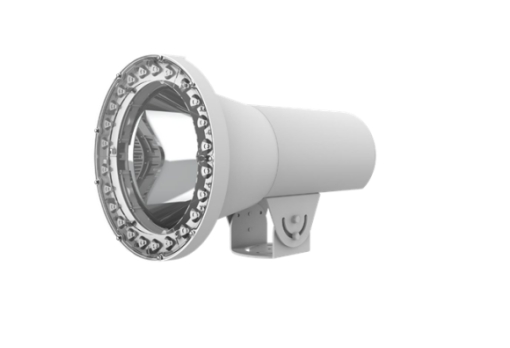

LAMP-H25@BM-OS

UNV LED Strobe & Xenon Flash Illuminator 202 31228（Public）

• 24 high-power warm light LEDs.
• The LED flashes synchronously when the xenon light flashes. Adjustable flash brightness, high beam, uniform light.
• 3 lane coverage.
• Unique design and high-performance dedicated components ensure reliable operation in a variety of complex conditions. Long lifetime of over 50000 hrs or upto 10 million times.
• Stable brightness withstands fluctuations in the power supply voltage.

BOM	Description
BOM	0231C1DV
parameter	Description
Trigger mode	Strobe: TTL level/switch Flash: Switch
Day/Night	Support day night functions
Color temperature	Xenon 6000±500K
	LED 3000±200K
Strobe power	34.5W@3A/40% (active power)
LEDs	24
Strobe illumination angle	10°
Output energy	Flash 40J to 80J
Flash duration	300us by default
Exposure index	40 to 64 (GN)
Response time	≤18us
Optimal illumination distance	Strobe: 16m to 29m Flash: 18m to 32m
Interface	1 power input；1 flash trigger input；1 strobe trigger input; sync
Power	AC 220V±20%, 40 to 60Hz, operates from ANPR power output
Weight	4.5kg
Operating temperature	-45°C to 80°C
Operating humidity	5% to 95% RH (non-condensing)
Dimensions (L×W×H)	436.1mm282mm279.6mm
Ingress protection	IP67
Lifetime	≥50000 hrs or upto 10 million times
