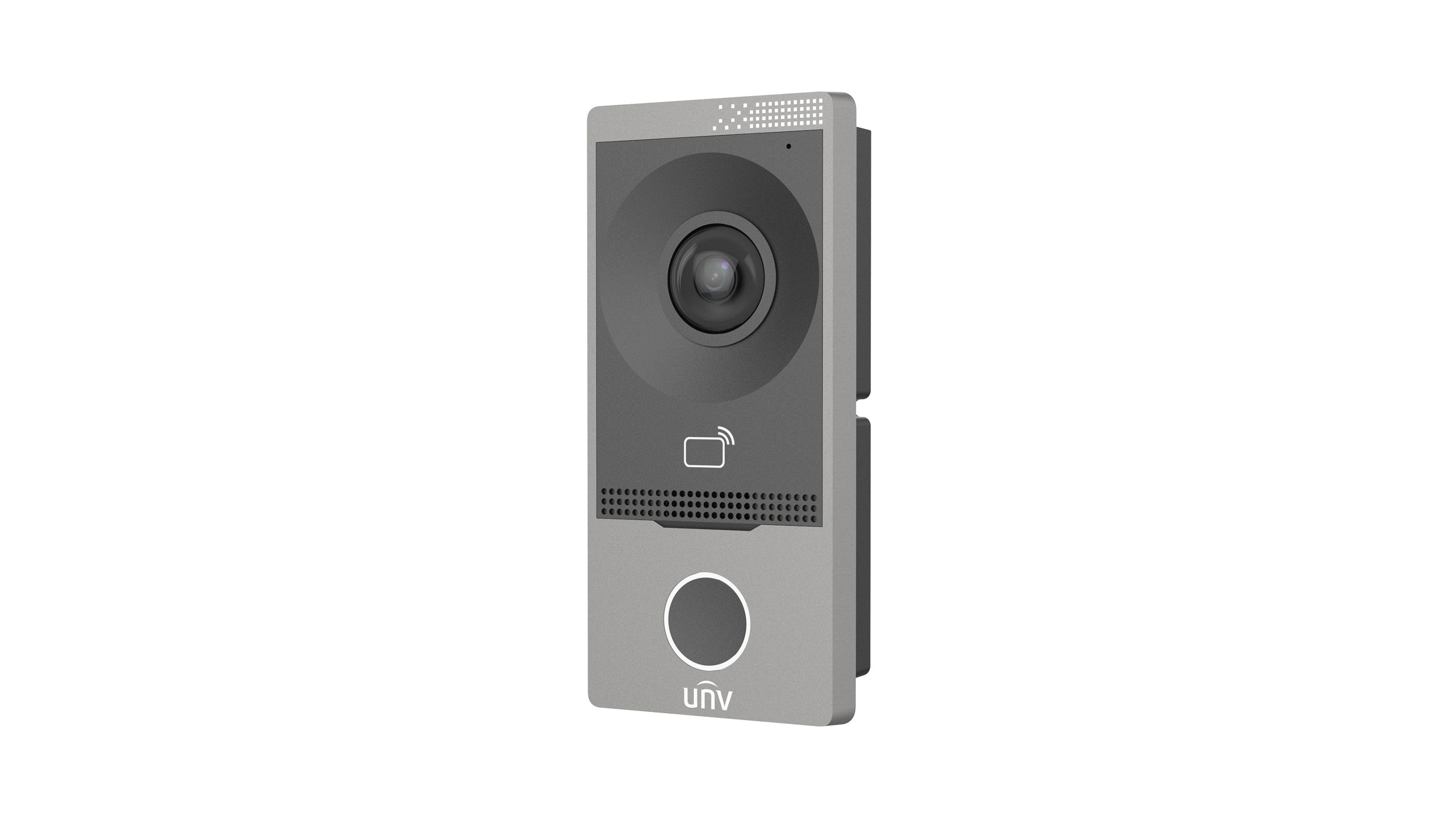

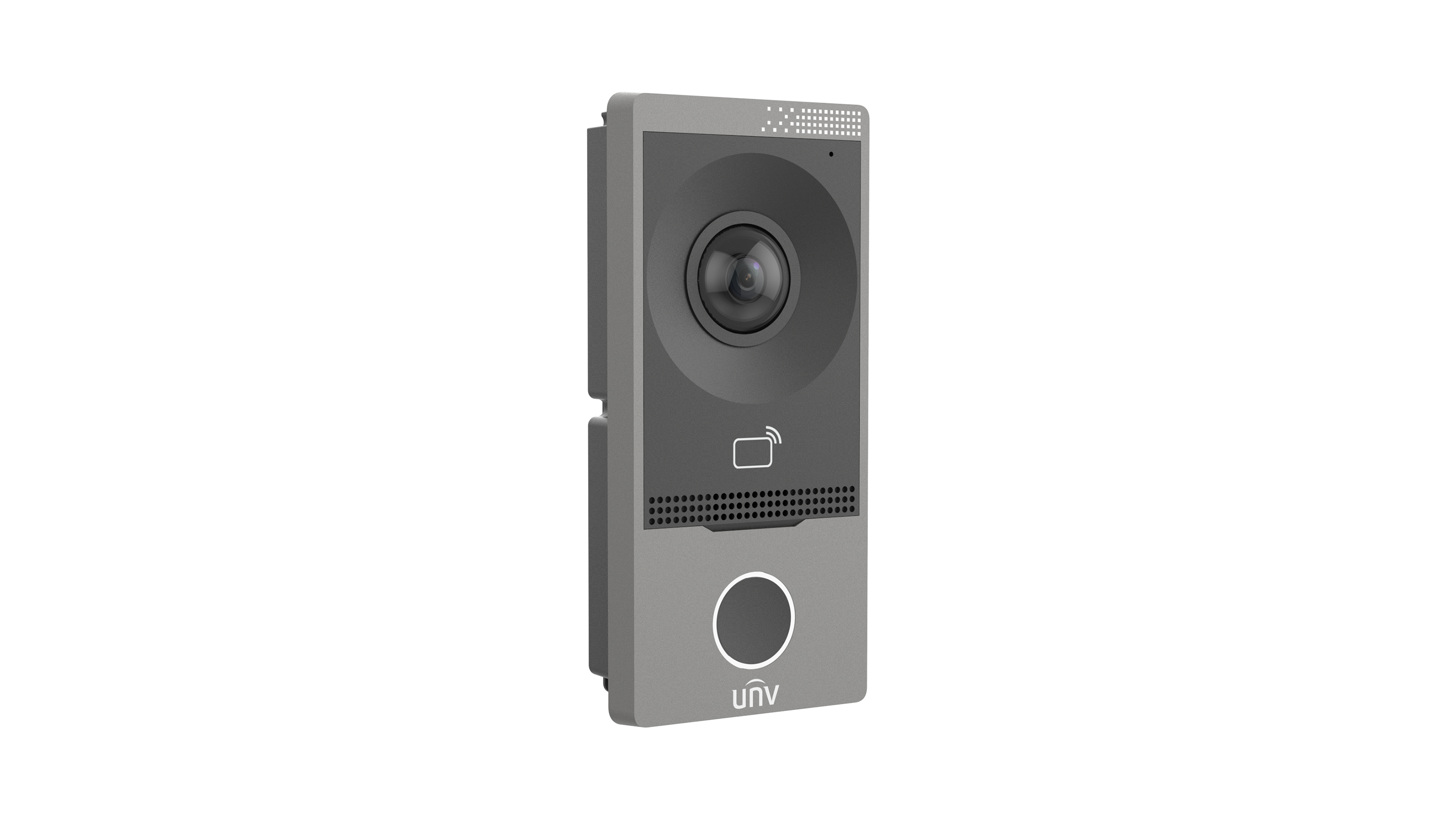

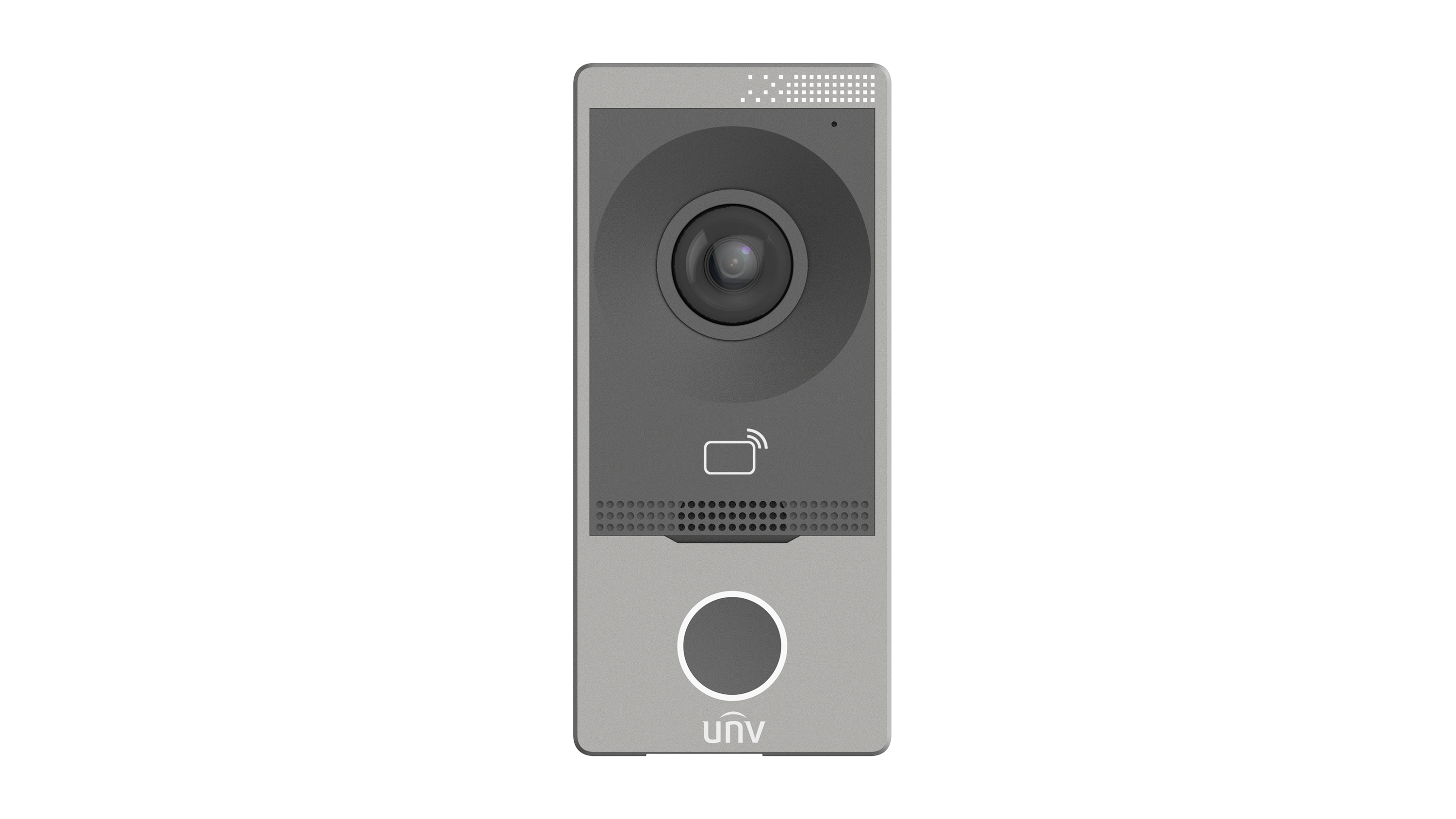

| OEU-201S-HMK-W | ||||||||
| Hardware Specification | ||||||||
| Power Supply | DC 12V±25% input;IEEE802.3af, Standard PoE | |||||||
| Operation System | Linux | |||||||
| Supplement Light | IR light(Adaptive infrared compensation) | |||||||
| FOV | Horizontal:124.3° Vertical:67.5° Diagonal:147.2° | |||||||
| Power consumption | <10W | |||||||
| Volume adjustment | Adjustable | |||||||
| Audio quality | Noise suppression, echo cancellation and AGC | |||||||
| Audio input | 1 built-in omnidirectional microphone | |||||||
| Audio output | 1 built-in speaker | |||||||
| Audio compression standard | PCM, G711, MP3 | |||||||
| Audio compression bitrate | 128Kbps | |||||||
| Protection Level | IP65 (Apply waterproof glue to the gap between the device and the wall. For more information, see the quick guide.) IK08 | |||||||
| Weight | 0.267Kg | |||||||
| Dimensions (L x W x H) | 79mm×171mm×34mm | |||||||
| Mount method | Wall mounted, flush installation | |||||||
| Interface | Power *1, network port *1, WIFI, RS485, door lock interface *2, IO input *4 | |||||||
| Network | 100Mbps network port, supports IEEE802.3af PoE power supply | |||||||
| Operating environment | ﹣30℃~﹢60℃,10%~90%, non-condensing, outdoor | |||||||
| Specification index | ||||||||
| Card Capacity | 10000 | |||||||
| Linked indoor station capacity | 20 | |||||||
| Basic business | ||||||||
| WDR | Support DWDR | |||||||
| Protocol | UNV private protocol | |||||||
| Button | 1 physical button | |||||||
