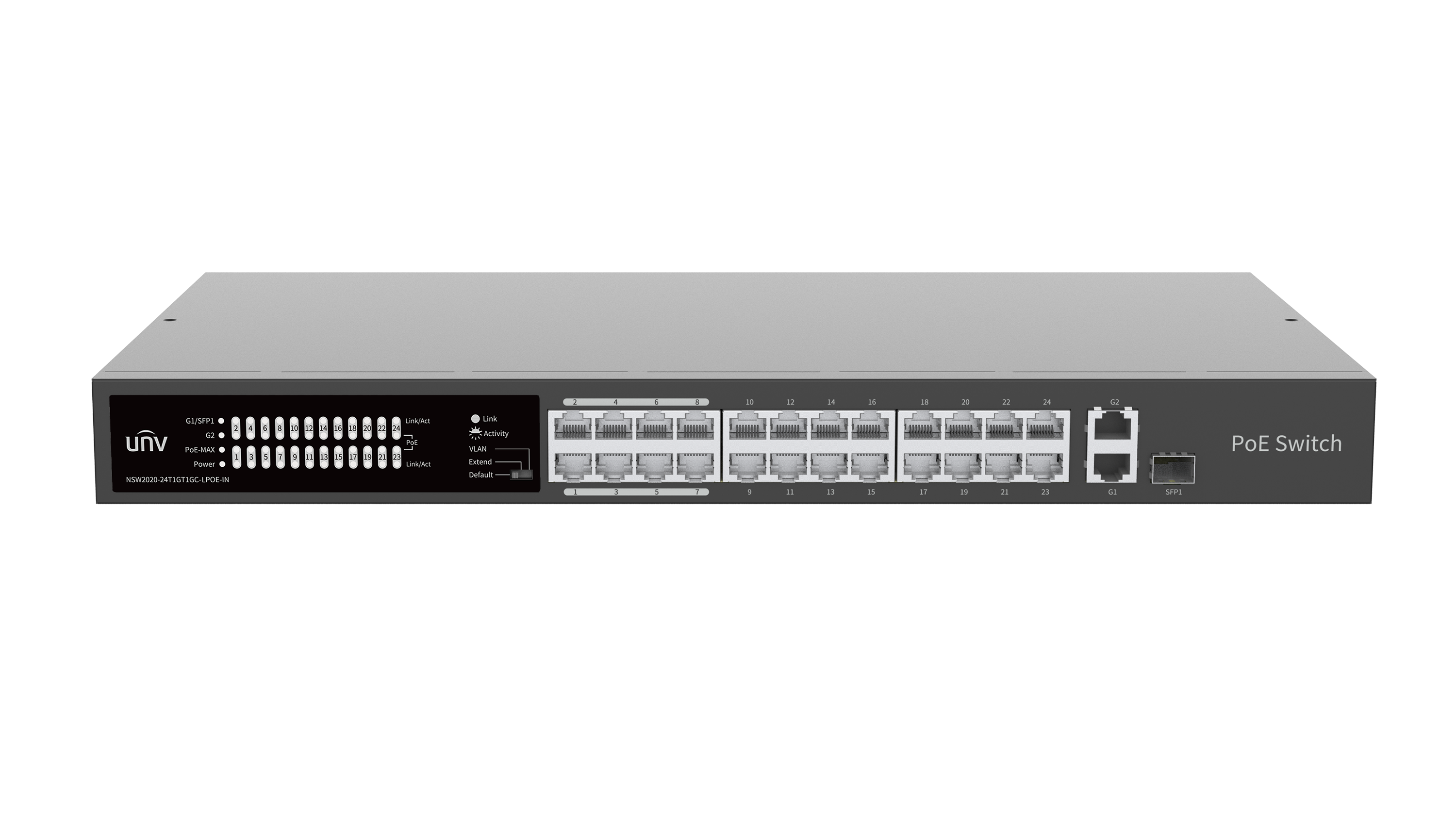

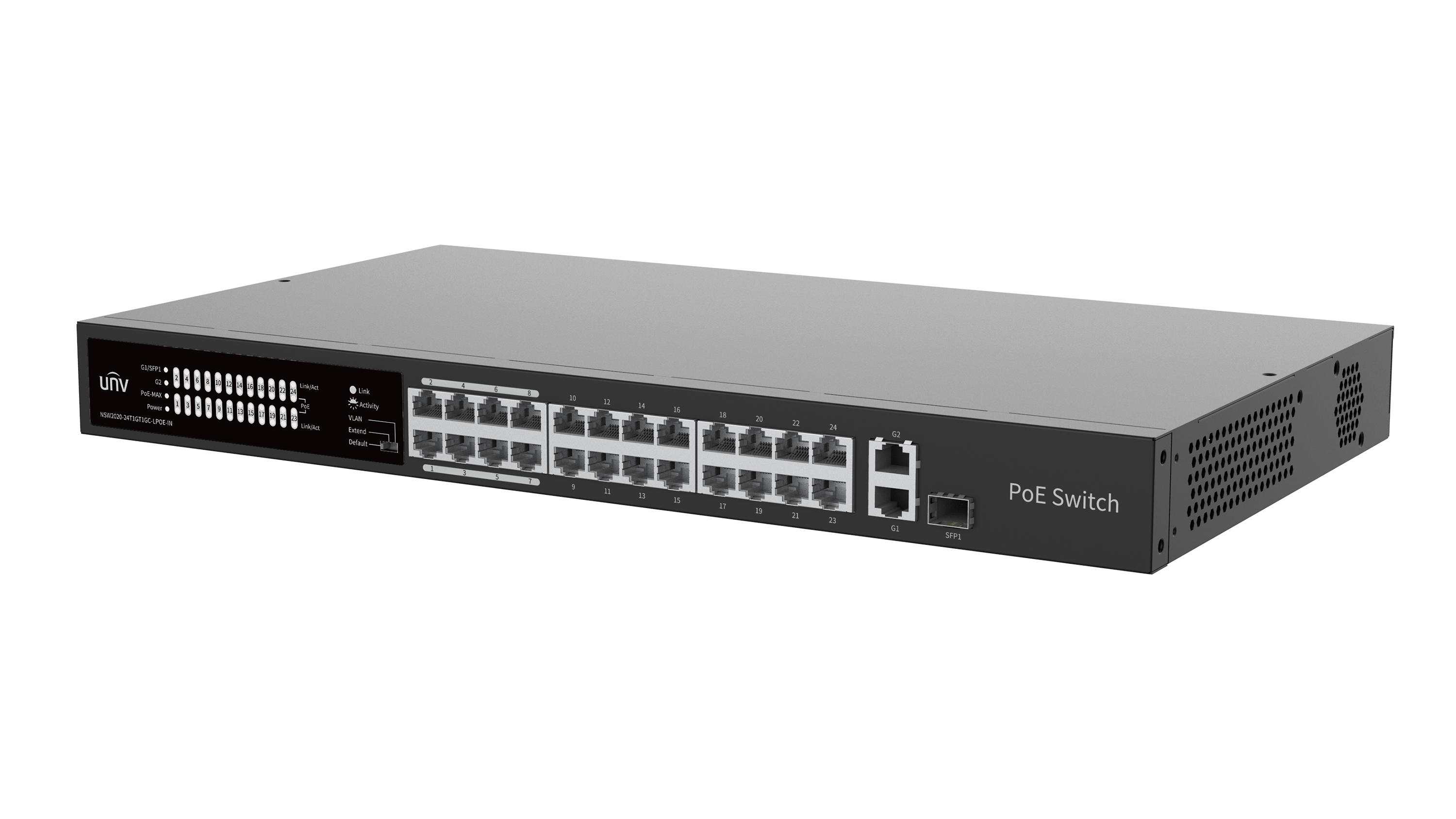

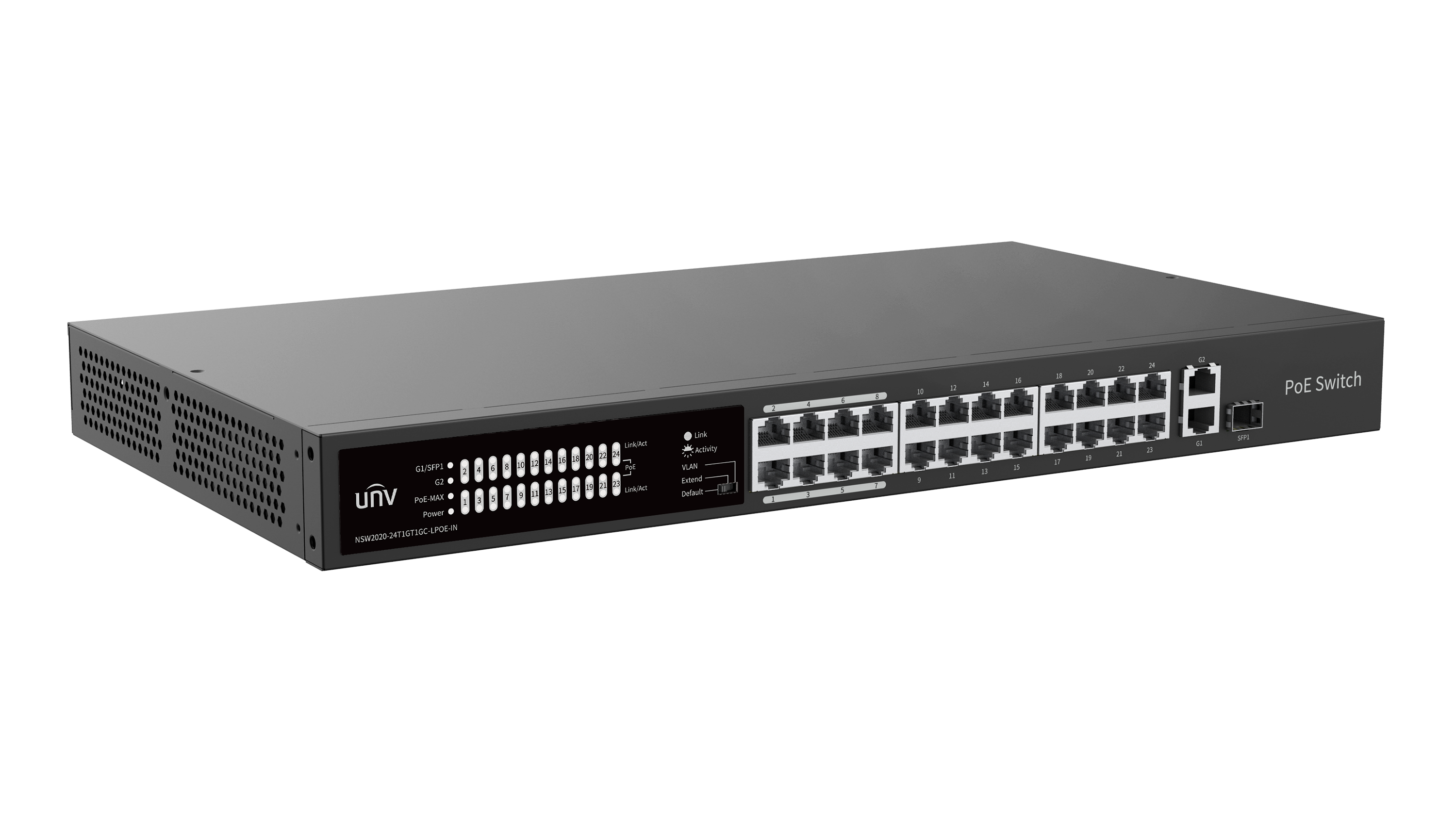

NSW2020-24T1GT1GC-LPOE-IN
Unmanaged Ethernet Switch(PoE)
• Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable
Specification
Download
How to buy
 NSW2020-24T1GT1GC-LPOE-IN
Hardware Specification
Ports Type24×100Mbps PoE ports (RJ45)+ 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports
StandardsIEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
Switching capacity8.8Gbps
Forwarding performance6.55Mpps
Packet Buffer4M bit
MAC16K
Dimensions (W×D×H)440*195*44mm
Weight2.15KG
Power SupplyAC: 100-240V, 50/60Hz
Max.Power250W
PoE802.3at/af (4/5+, 7/8-)
Max. PoE Power
Max capacity: 250W,
Max capacity for single port: 30W
Prior Ports1~8
Cooling Fans1
Operating temperature0 °C ~ 40 °C (32 °F ~ 104 °F)
Operating humidity10%～90% (noncondensing)
IndicatorPOWER Steady on: AC input is normal,
POWER Off: No AC input, PoE-MAX off: The POE power supply power of the whole machine is less than 80% of the specification,
PoE-MAX Steady on : The POE power supply power of the whole machine is greater than 85% of the specification,
LINK/ACT Off: No link,
LINK/ACT Steady on: Linked,
LINK/ACT Flashing: Transmitting data,
PoE Off: No PoE power supply,
PoE Steady on: PoE power supply is normal
Working ModeDefault(Normal mode) : All ports can communicate with each other.,
Extend(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports. , VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time.
