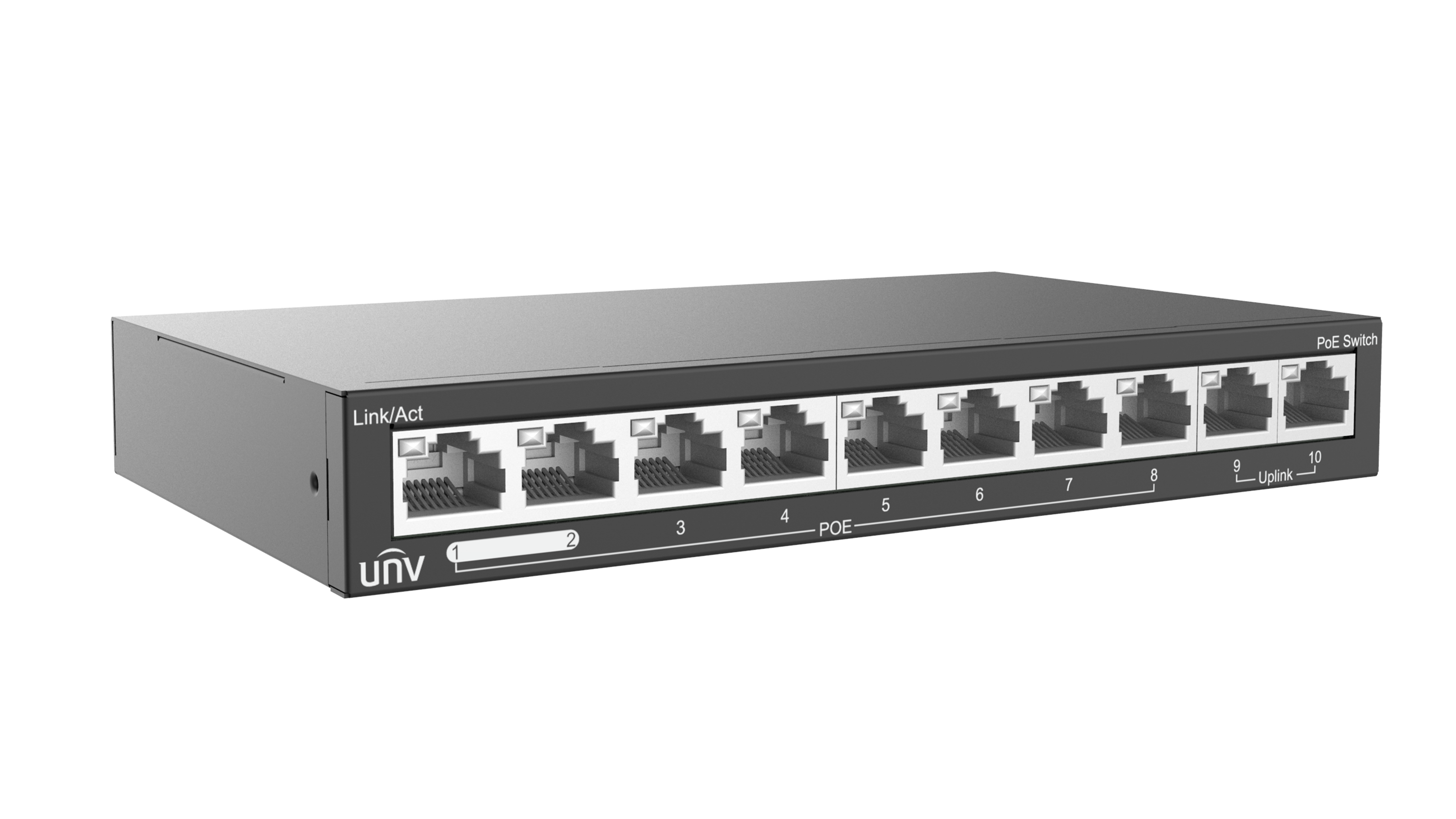

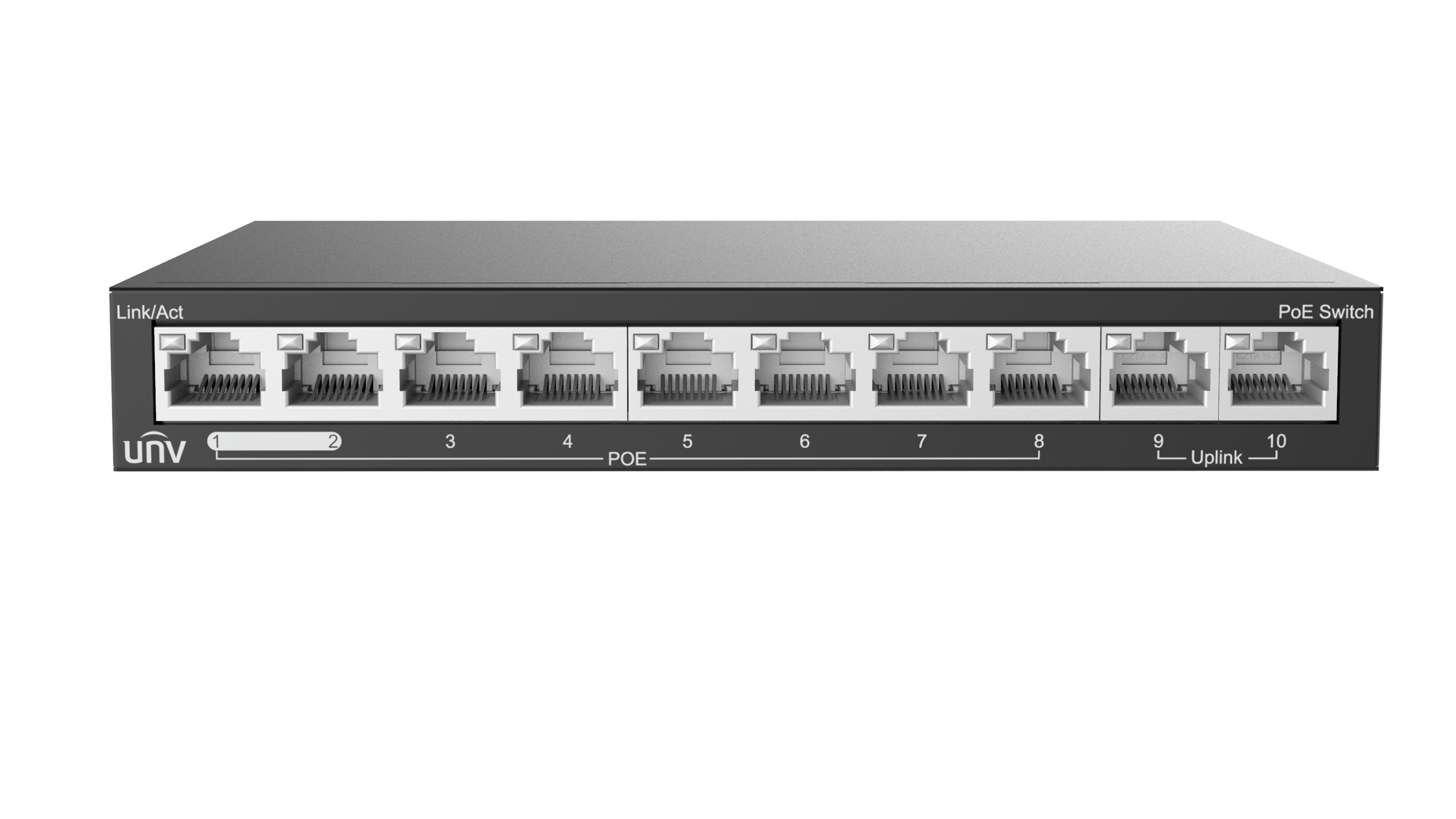

NSW2020-10T-POE-IN
Unmanaged Ethernet Switch(PoE)
• Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable
Specification
Download
How to buy
 NSW2020-10T-POE-IN
Hardware Specification
Ports Type10×100Mbps network ports (RJ45), including 8 PoE ports
Prior Ports1~2
IndicatorPOWER Steady on: AC input is normal,
POWER Off: No AC input,
No PoE Indicator, PoE-MAX off: The POE power supply power of the whole machine is less than 80% of the specification,
PoE-MAX Steady on : The POE power supply power of the whole machine is greater than 85% of the specification,
LINK/ACT Off: No link,
LINK/ACT Steady on: Linked,
LINK/ACT Flashing: Transmitting data
PoEsupport POE
Switching capacity2Gbps
Packet Buffer448K bit
Max. PoE Power
Max capacity: 88W,
Max capacity for single port: 30W
Storage Temperature-40 °C ~ 70 °C
Working ModeDefault(Normal mode) : All ports can communicate with each other.,
EXTEND(Surveillance mode): Transmission distance up to 250 meters.
Power SupplyDC: 48/51V, powered by adapter (AC100-240V, 50/60Hz)
Max.Power94W
Operating humidity10%～90% (noncondensing)
MAC1K
Forwarding performance1.49Mpps
Cooling Fans0
Weight0.29KG
Storage humidity5%～90% (noncondensing)
Dimensions (W×D×H)171*103*25mm
Operating temperature0 °C ~ 40 °C (32 °F ~ 104 °F)
StandardsIEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
