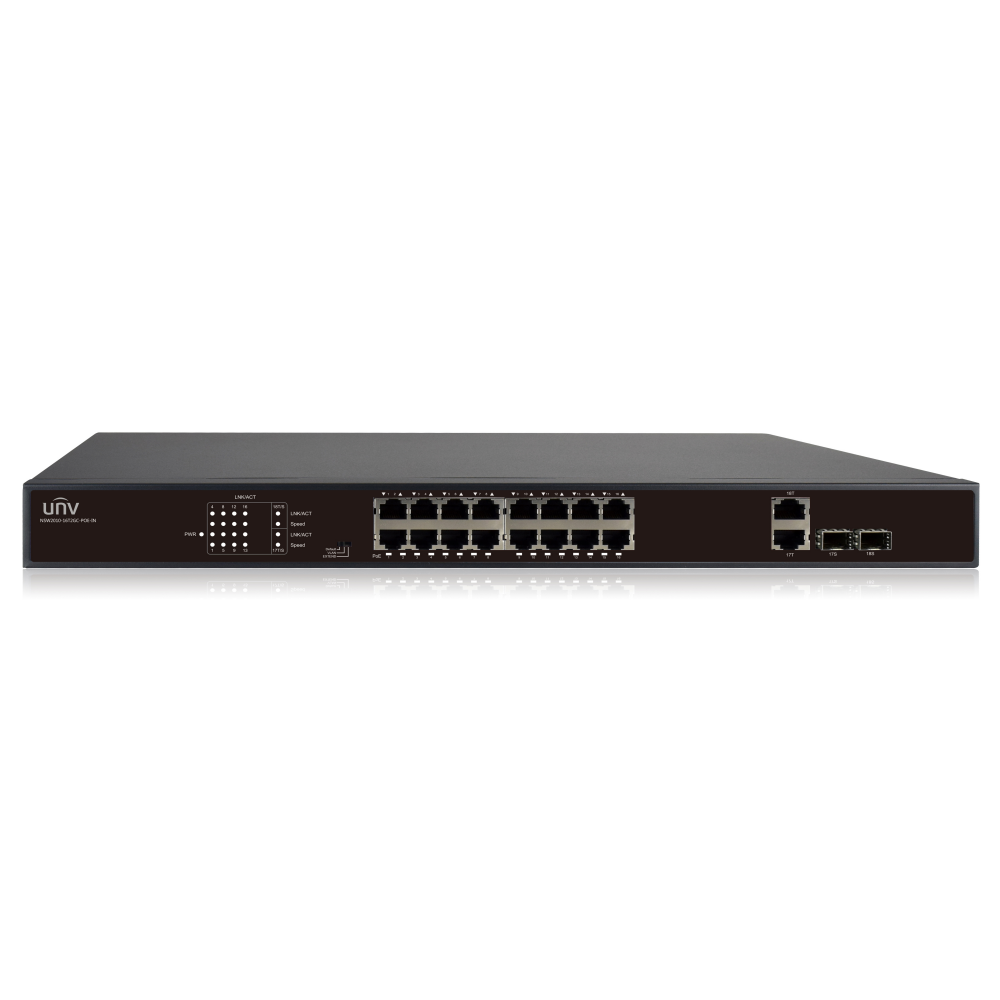

NSW2010-16T2GC-POE-IN

Ethernet Switch(PoE)

• Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable

	NSW2010-16T2GC-POE-IN
Hardware Specification
Ports Type	16×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports
Standards	IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Switching capacity	7.2Gbps
Packet Buffer	4M bit
Forwarding performance	5.36Mpps
MAC	16K
Max. PoE Power	Max capacity: 250W, Max capacity for single port: 30W
Power supply	AC: 100-240 V, 50/60 Hz
Weight	<4.2 kg
Cooling Fans	2
Mean Time Between Failure (MTBF)	>50000 hours
Dimensions (W×D×H)	440mm x 207mm x 45mm(17.3"×8.1"×1.8")
Storage Temperature	-40 °C ~ 70 °C
Operating humidity	10%～90% (noncondensing)
Storage humidity	5%～90% (noncondensing)
Operating temperature	0 °C ~ 40 °C (32 °F ~ 104 °F)
Indicator	POWER Steady on: AC input is normal, POWER Off: No AC input, PoE Off: No PoE power supply, PoE Steady on: PoE power supply is normal, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data, Speed Off: Linked at 10/100Mbps, Speed On: Linked at 1000Mbps
Working Mode	Default(Normal mode) : All ports can communicate with each other., EXTEND(Surveillance mode): Transmission distance up to 250 meters., VLAN(Secure mode): Downlink ports can communicate only with uplink ports.
