IPC544SE-DK-I0

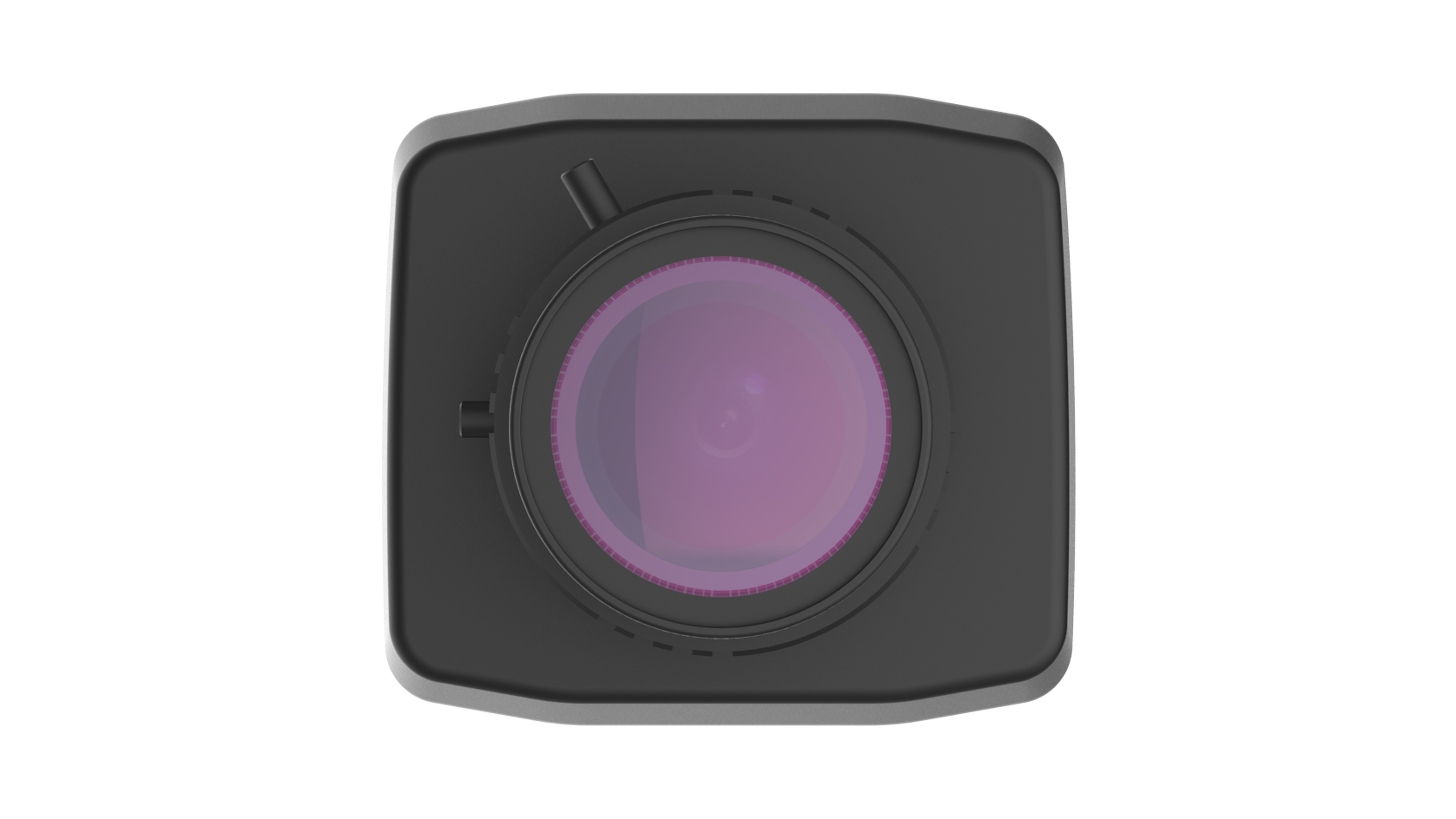

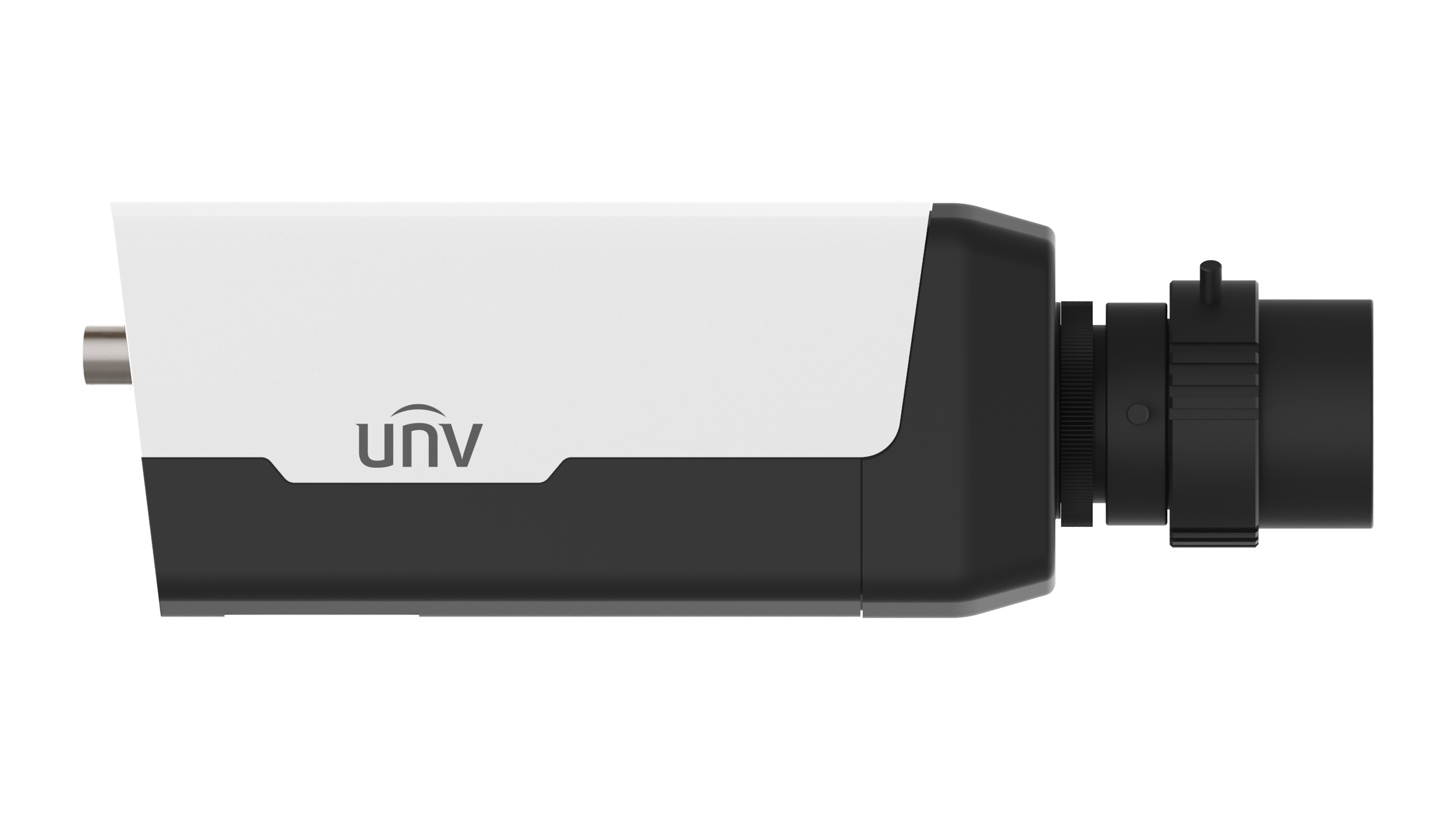

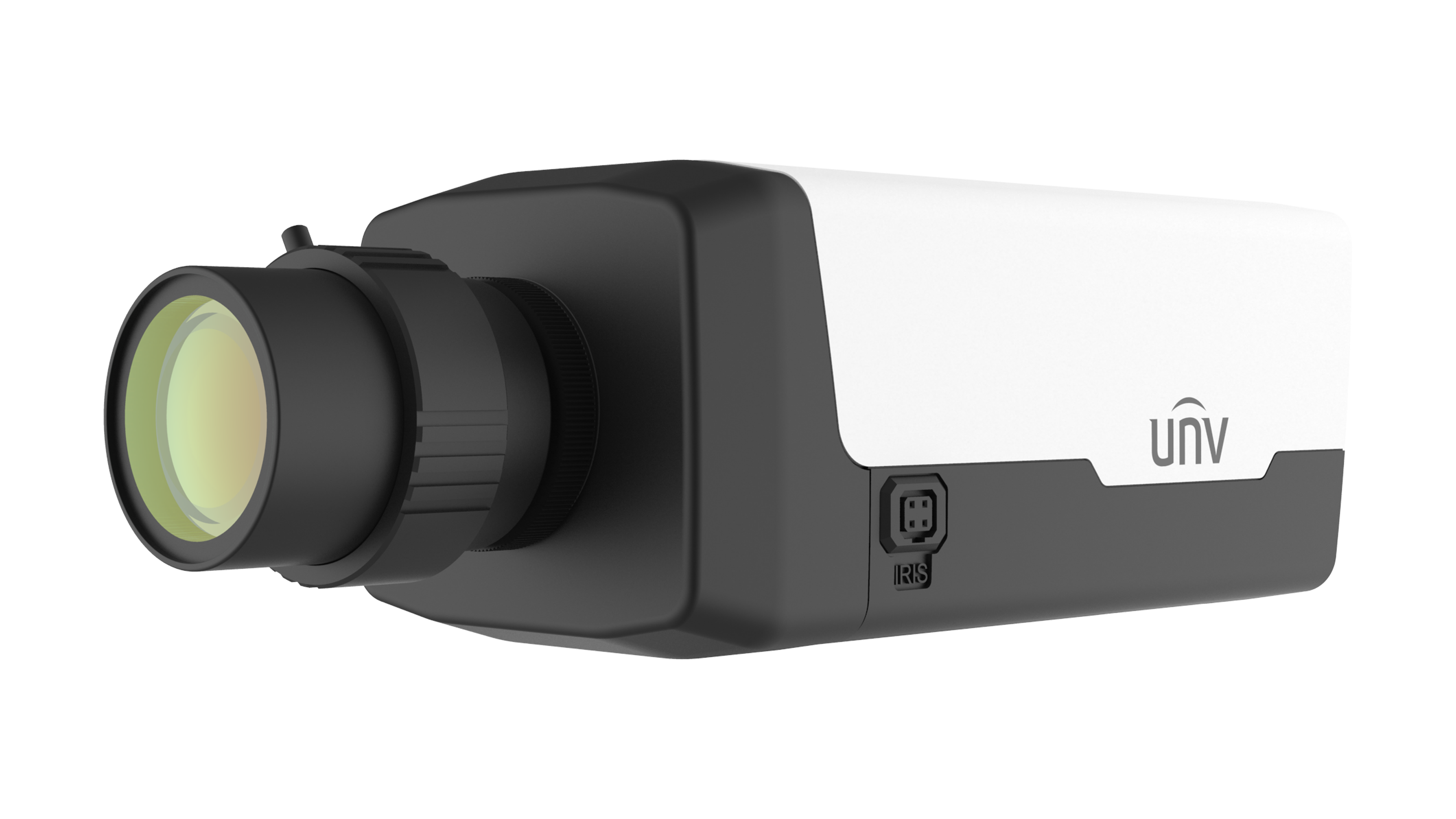

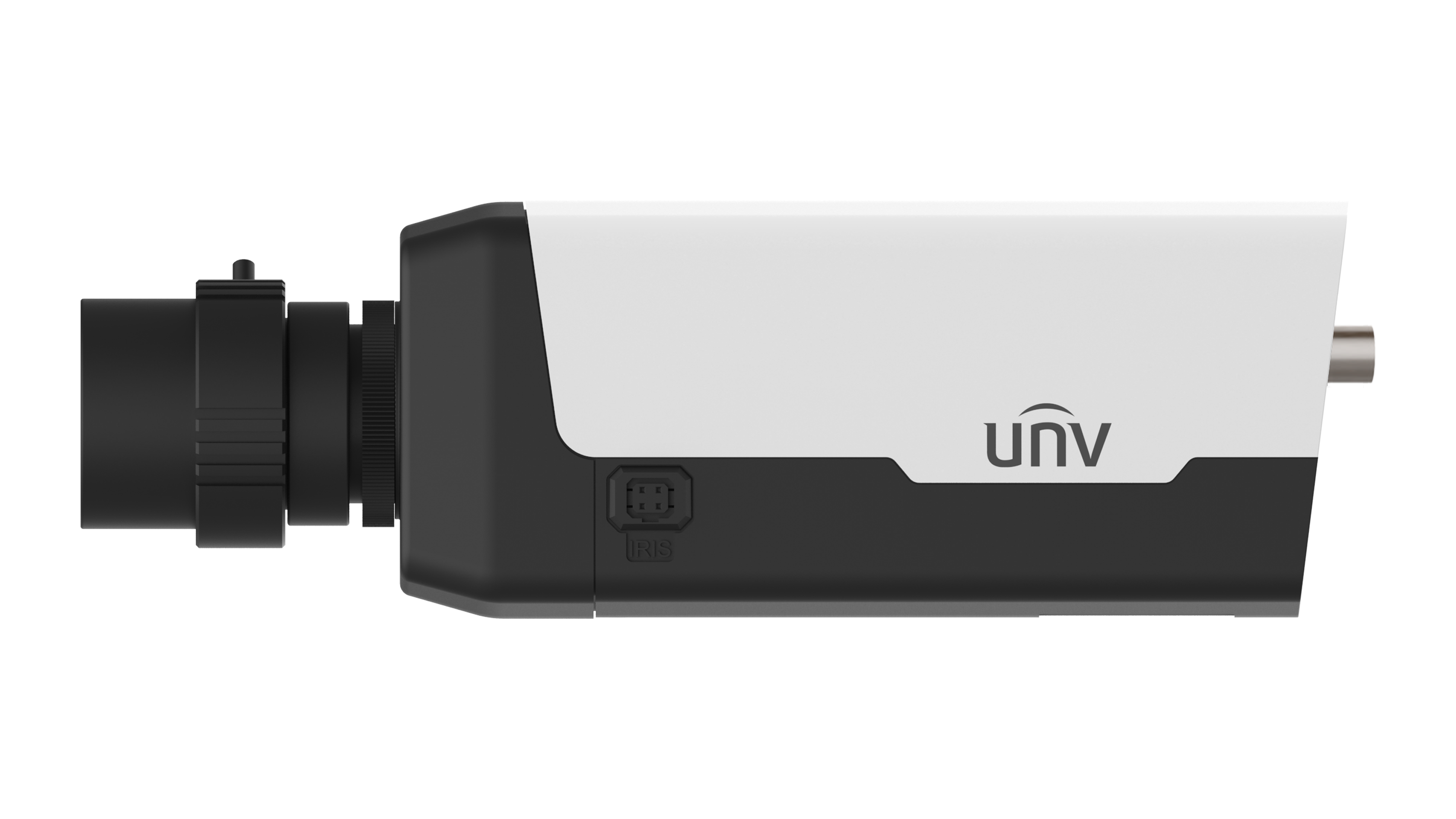

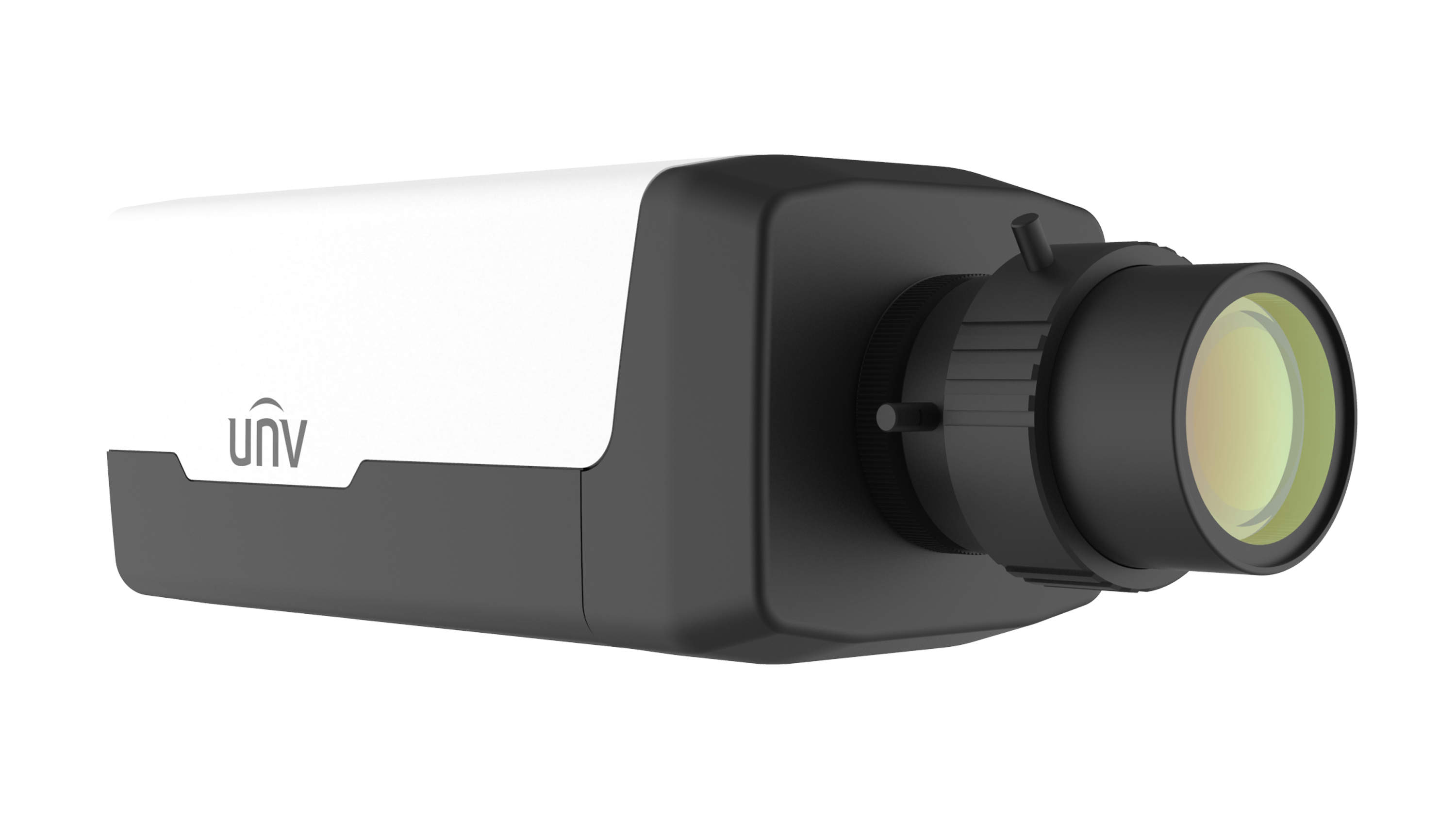

4MP LightHunter Box Network Camera
• High quality image with 4MP,1/1.8’’ CMOS sensor2688*1520@30fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• Triple streams
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• , automatic selection of best snapshots
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• DC12V or AC24V or PoE (IEEE 802.3af) power supply
• Wide voltage range of ±25%
• Audio 1 in and 1 out, Alarm 2 in and 1 out
Specification
Accessories
Download
How to buy
 IPC544SE-DK-I0
Camera
Sensor1/1.8" CMOS
Min. IlluminationColour:0.0005lux (F1.2, AGC ON)
B/W: 0.0001Lux(F1.2, AGC ON)
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual,
1 ~ 1/100000s
WDR120dB
S/N>56dB
Lens
Lens MountC/CS
IrisF1.2
Video
Frame Rate-Third StreamD1 (720*576), Max 30fps
Privacy MaskUp to 4 areas
Frame Rate-Main Stream4MP (2688*1520), Max 30fps
Frame Rate-Sub Stream720P (1280*720), Max 30fps
Video CompressionUltra 265, H.265, H.264, MJPEG
Video Bit Rate128 Kbps ~ 16 Mbps
U-codeSupport
ROIUp to 8 areas
Video StreamTriple Streams
OSDUp to 8 OSDs
Intelligent
Exception DetectionObject Removed, Object Left Behind, Scene Change
People CountingSupport People Flow Counting and Crowd Density Monitoring
Smart Intrusion PreventionSupport False Alarm Filtering: Cross Line Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection
DefogDigital Defog
White BalanceAuto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
FlipNormal, Flip Vertical, Flip Horizontal, 180°, 90°Clockwise, 90°Anti-clockwise
HLCSupport
BLCSupport
Heatwave ReductionN/A
Events
Basic DetectionMotion Detection, Tampering Alarm, Audio Detection
General FunctionWatermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate128 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate16KHZ
Storage
Edge StorageMicro SD, up to 512 GB
Network StorageANR, NAS (NFS)
Network
ProtocolsSSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible IntegrationAPI, SDK, ONVIF (Profile S, Profile G, Profile T)
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityTLS1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientUNV-Link, UNV-Link Pro, EZStation
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O1/1
Alarm I/O2/1
Serial Port1 channel RS485 interface
Network1 x RJ45 10M/100M Base-TX Ethernet
Video Output1 BNC
Certification
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
General
PowerDC12V(±25%), AC24V(±25%), PoE(IEEE 802.3af)
Power ConsumptionMax 8W
Power InterfaceTwo-core terminal block
Dimensions152 x 71 x 65mm (6.0“ x 2.8“ x 2.6”) (excluding the lens)
Weight0.38kg (0.84lb)
Working Environment-20 °C ~ 60 °C (-4 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)
Web Client Language22 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Storage Environment-40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ≤95% RH (non-condensing)
Surge Protection6KV
Reset ButtonSupport
