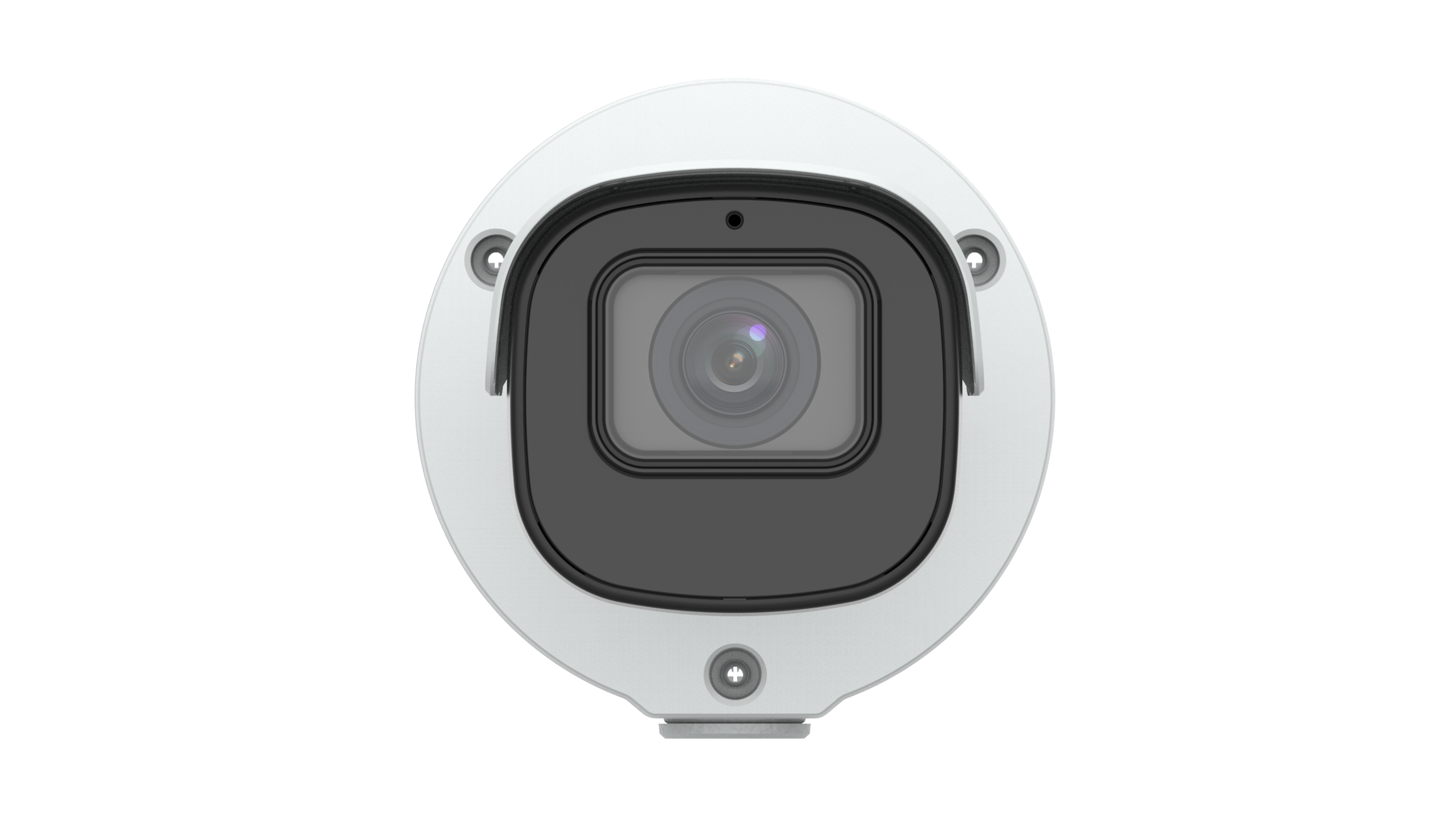

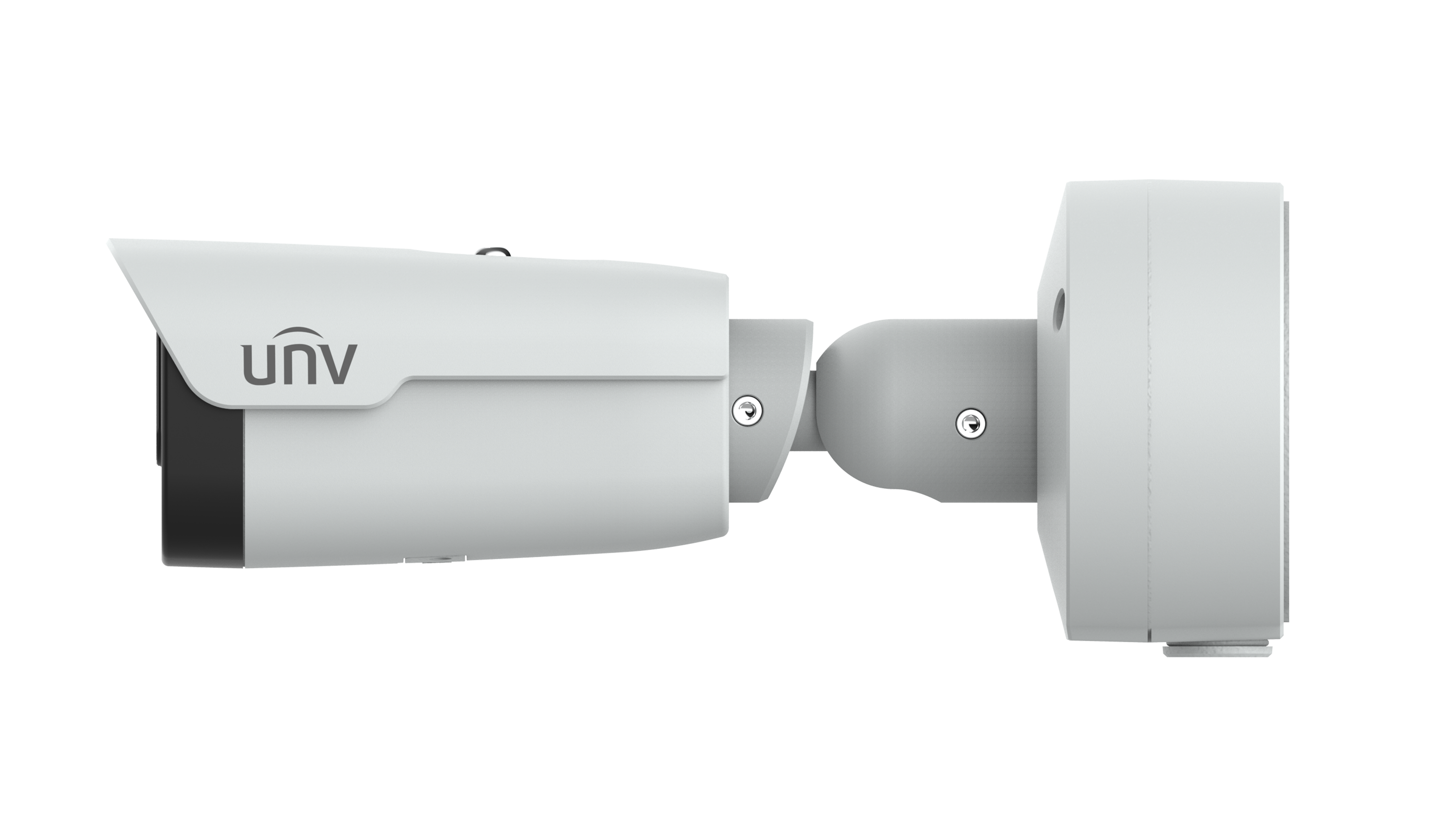

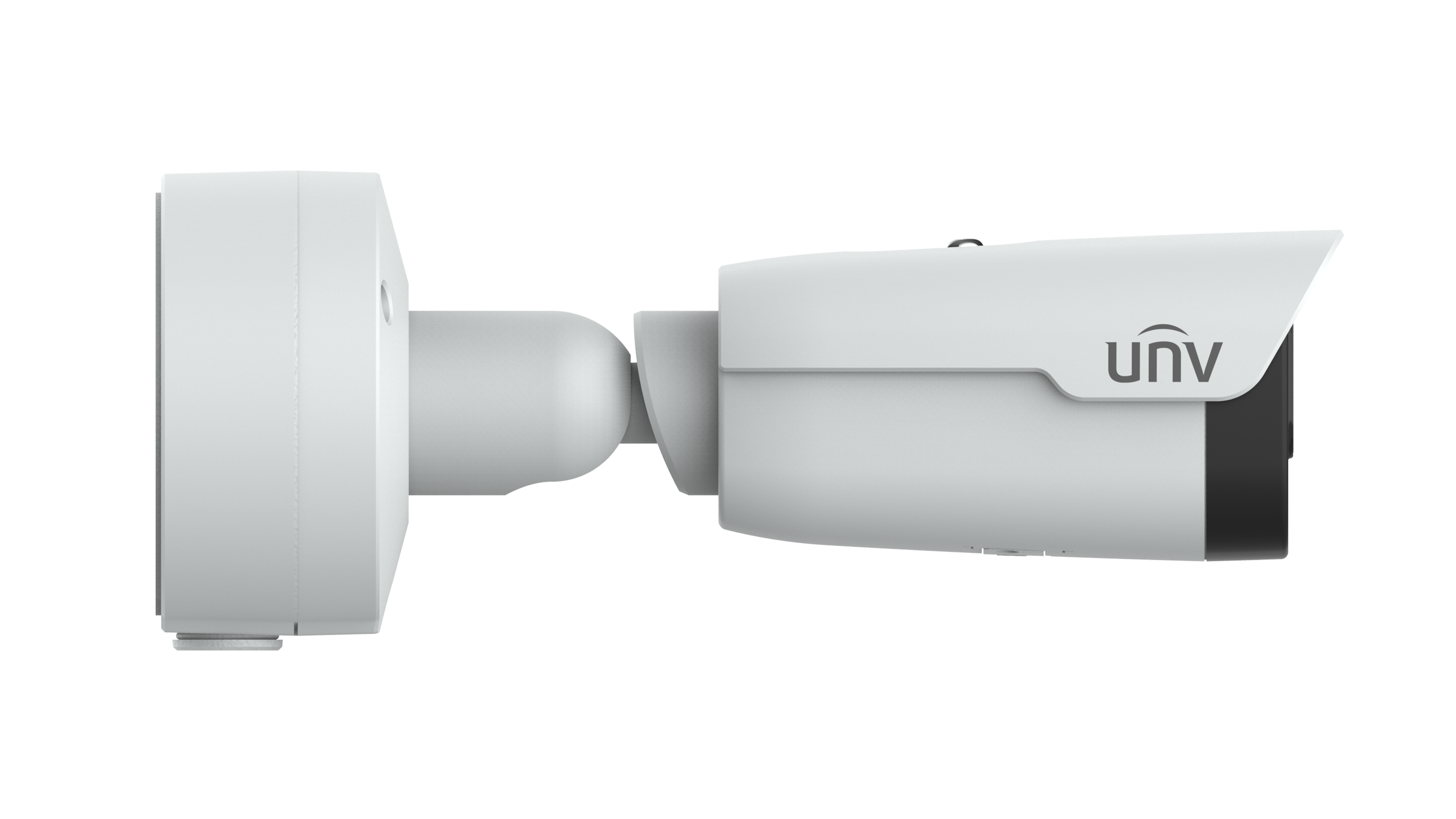

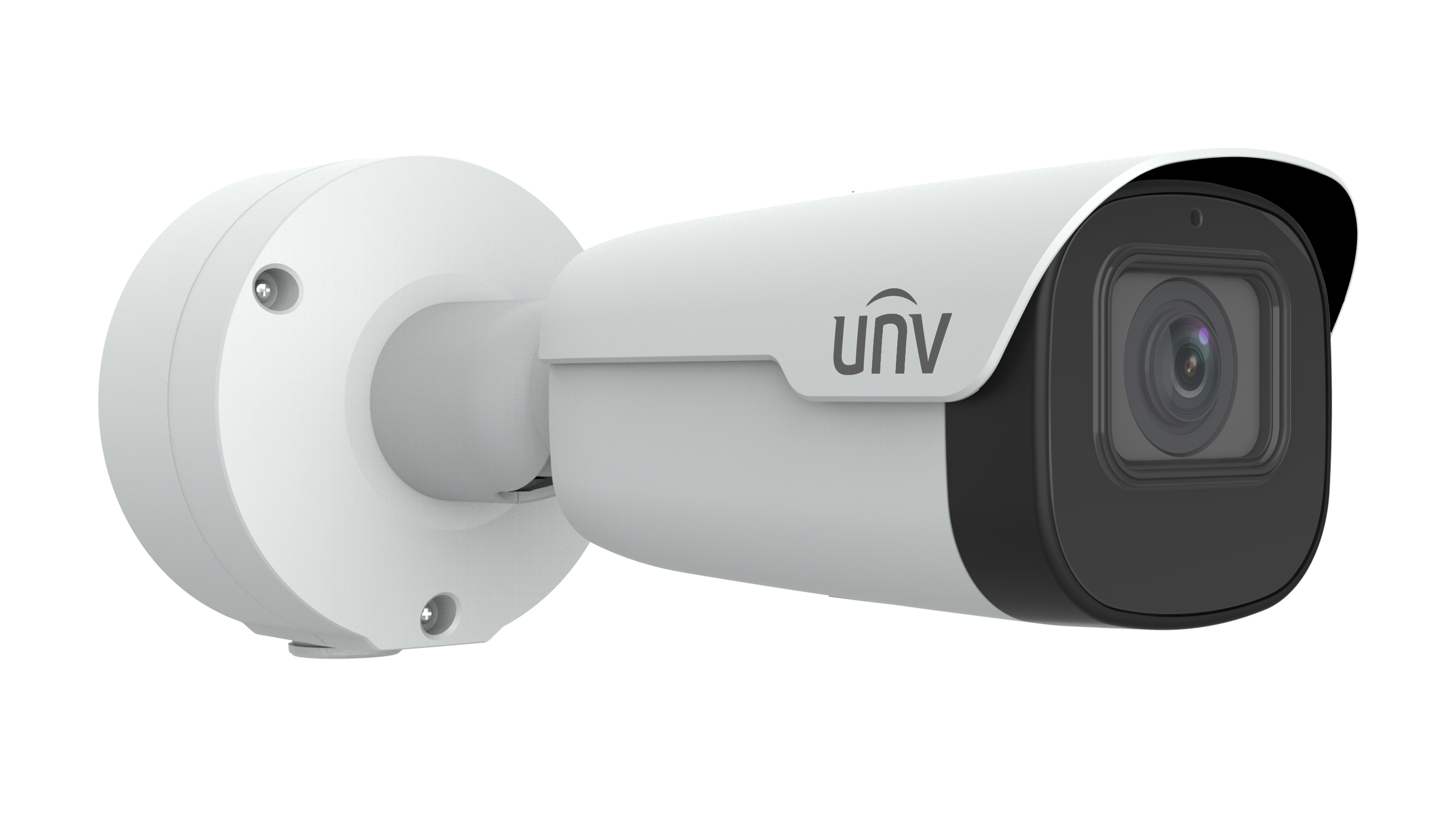

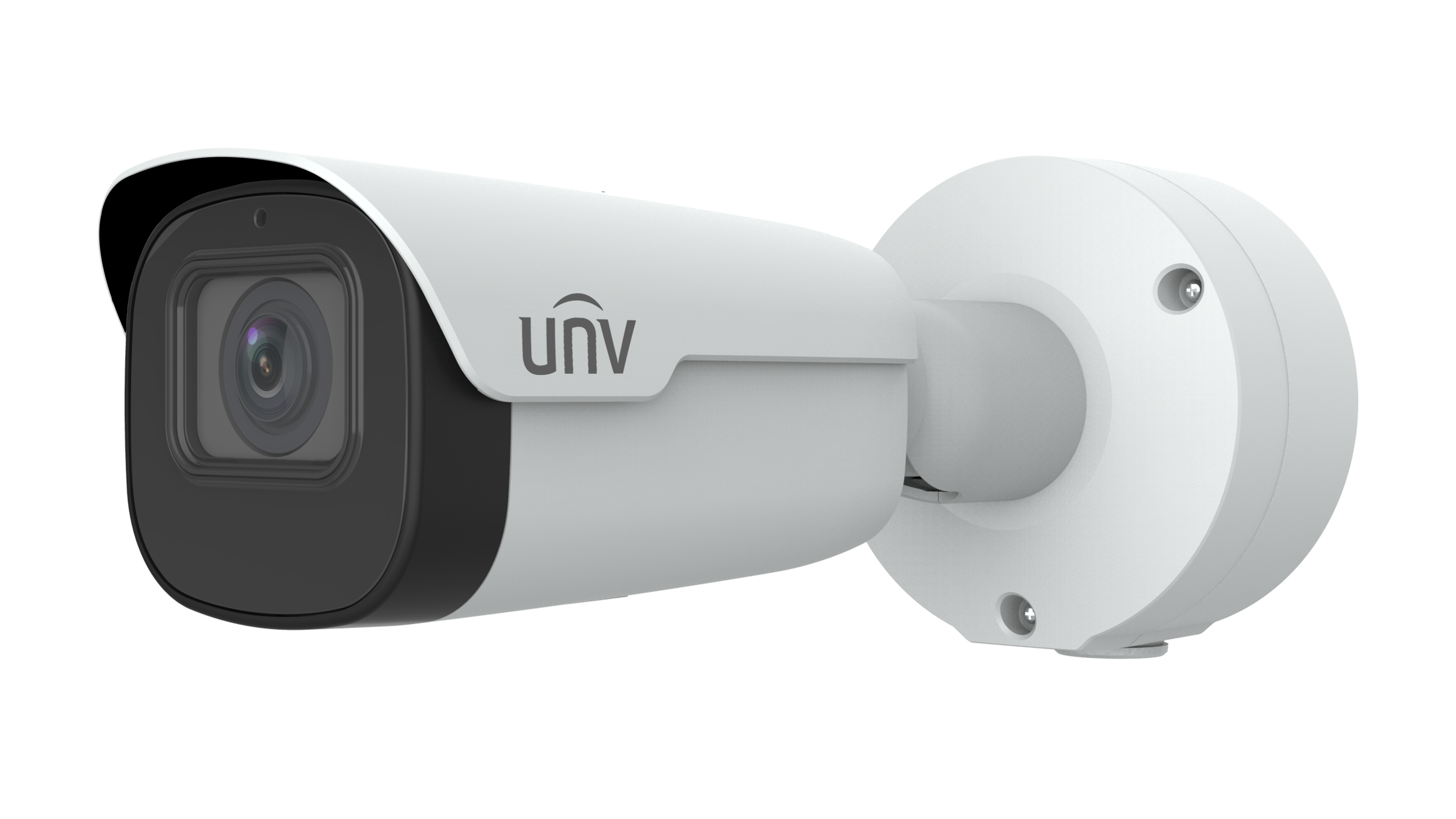

| IPC2A28SE-ADZK-I0 | ||||||||
| Camera | ||||||||
| Sensor | 1/1.8" CMOS | |||||||
| Min. Illumination | Colour:0.0008 lux (F1.2, AGC ON) 0 lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Adjustment Angle | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° | |||||||
| WDR | 120dB | |||||||
| S/N | >56dB | |||||||
| Lens | ||||||||
| Focal Length | 2.8 ~ 12 mm | |||||||
| Digital Zoom | 16X | |||||||
| Optical Zoom | 5X | |||||||
| Iris Type | Fixed | |||||||
| Iris | F1.2 | |||||||
| Field of View (H) | 101.1°~48.0° | |||||||
| Field of View (V) | 57.2°~23.9° | |||||||
| Field of View (D) | 124.3°~59.0° | |||||||
| DORI | ||||||||
| DORI Distance(Lens) | 2.8~12(mm) | |||||||
| DORI Distance(Detect) | 98.6m(323.3ft)~241.0m(790.6ft) | |||||||
| DORI Distance(Observe) | 39.4m(129.3ft)~96.4m(316.2ft) | |||||||
| DORI Distance(Recognize) | 19.7m(64.7ft)~48.2m(158.1ft) | |||||||
| DORI Distance(Identify) | 9.9m(32.3ft)~24.1m(79.1ft) | |||||||
| Illuminator | ||||||||
| Illumination Distance(IR) | 80 m (262 ft) | |||||||
| Wavelength | 850 nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Video | ||||||||
| Frame Rate-Main Stream | 8MP (3840*2160), Max 30fps | |||||||
| Frame Rate-Sub Stream | 720P (1280*720), Max 30fps | |||||||
| Frame Rate-Third Stream | D1 (720*576), Max 30fps | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Video Bit Rate | 128 Kbps ~ 16 Mbps | |||||||
| U-code | Support | |||||||
| ROI | Up to 8 areas | |||||||
| Video Stream | Triple Streams | |||||||
| OSD | Up to 10 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| Intelligent | ||||||||
| Smart Intrusion Prevention | Support False Alarm Filtering: Cross Line Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection | |||||||
| People Counting | Support People Flow Counting and Crowd Density Monitoring | |||||||
| Exception Detection | Object Removed, Object Left Behind, Scene Change | |||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | Normal, Flip Vertical, Flip Horizontal, 180° | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Digital Defog | |||||||
| Heatwave Reduction | N/A | |||||||
| Events | ||||||||
| Basic Detection | Motion Detection, Audio Detection, Tampering Alarm | |||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, Alarm Input, Alarm Output, HTTP Authentication | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 128 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 16KHZ | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Network | ||||||||
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Security | TLS1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
| Client | UNV-Link, UNV-Link Pro, EZStation | |||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | |||||||
| Interface | ||||||||
| Audio I/O | 1/1 | |||||||
| Alarm I/O | 2/1 | |||||||
| Built-in Mic | Support | |||||||
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | |||||||
| Video Output | 1 BNC | |||||||
| General | ||||||||
| Storage Environment | -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ≤95% RH (non-condensing) | |||||||
| Surge Protection | 6KV | |||||||
| Power | DC12V(±25%), PoE(IEEE 802.3af) | |||||||
| Power Consumption | Max 10W | |||||||
| Power Interface | Ø 5.5 mm coaxial power plug | |||||||
| Dimensions | Ø 130×322mm (Ø 5.1’’ x 12.7’’) | |||||||
| Weight | 1.3Kg(2.87lb) | |||||||
| Working Environment | -40 ℃ ~ 60 ℃ (-40 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |||||||
| Reset Button | Support | |||||||
| Web Client Language | 22 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | |||||||
