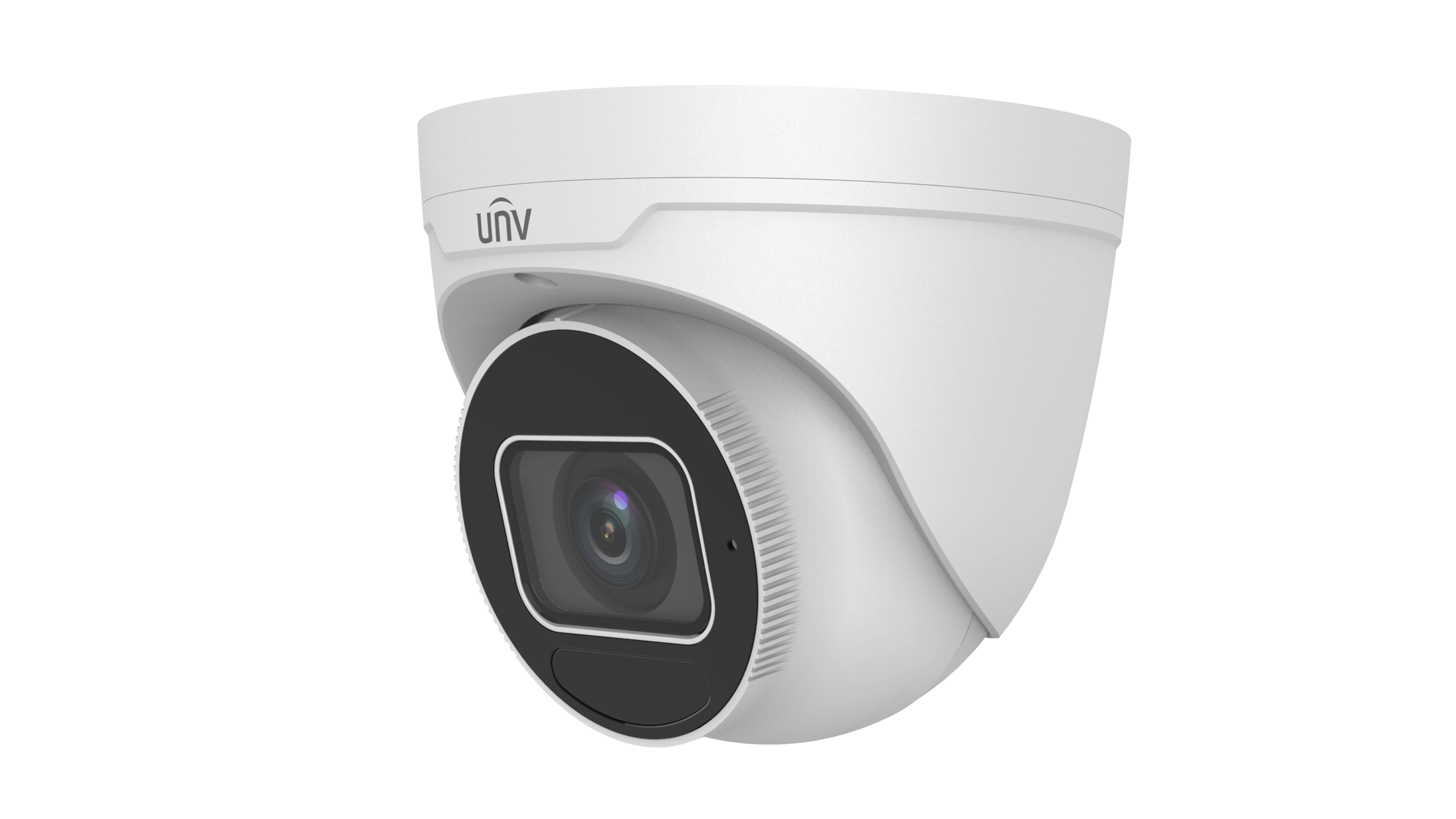

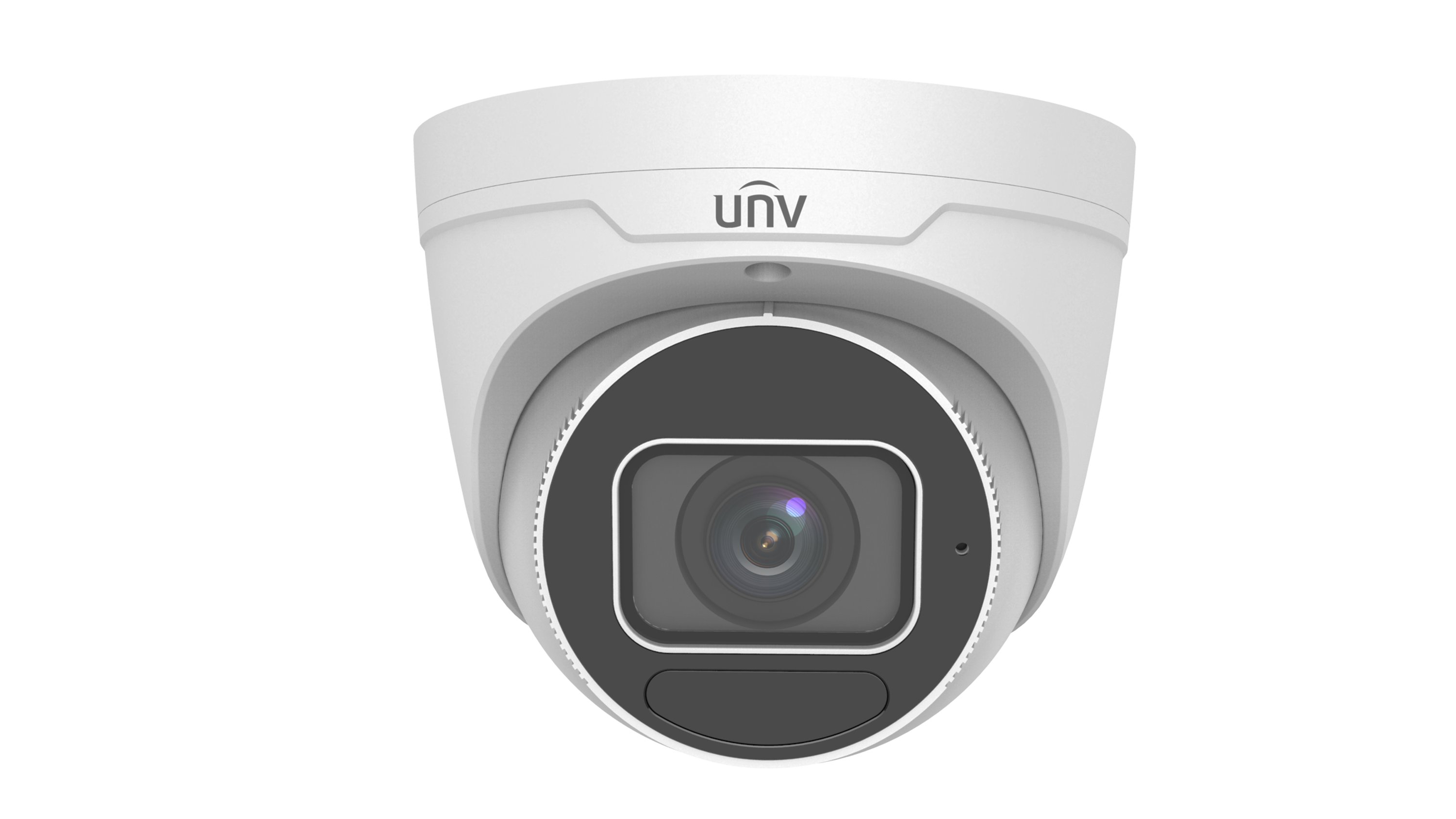

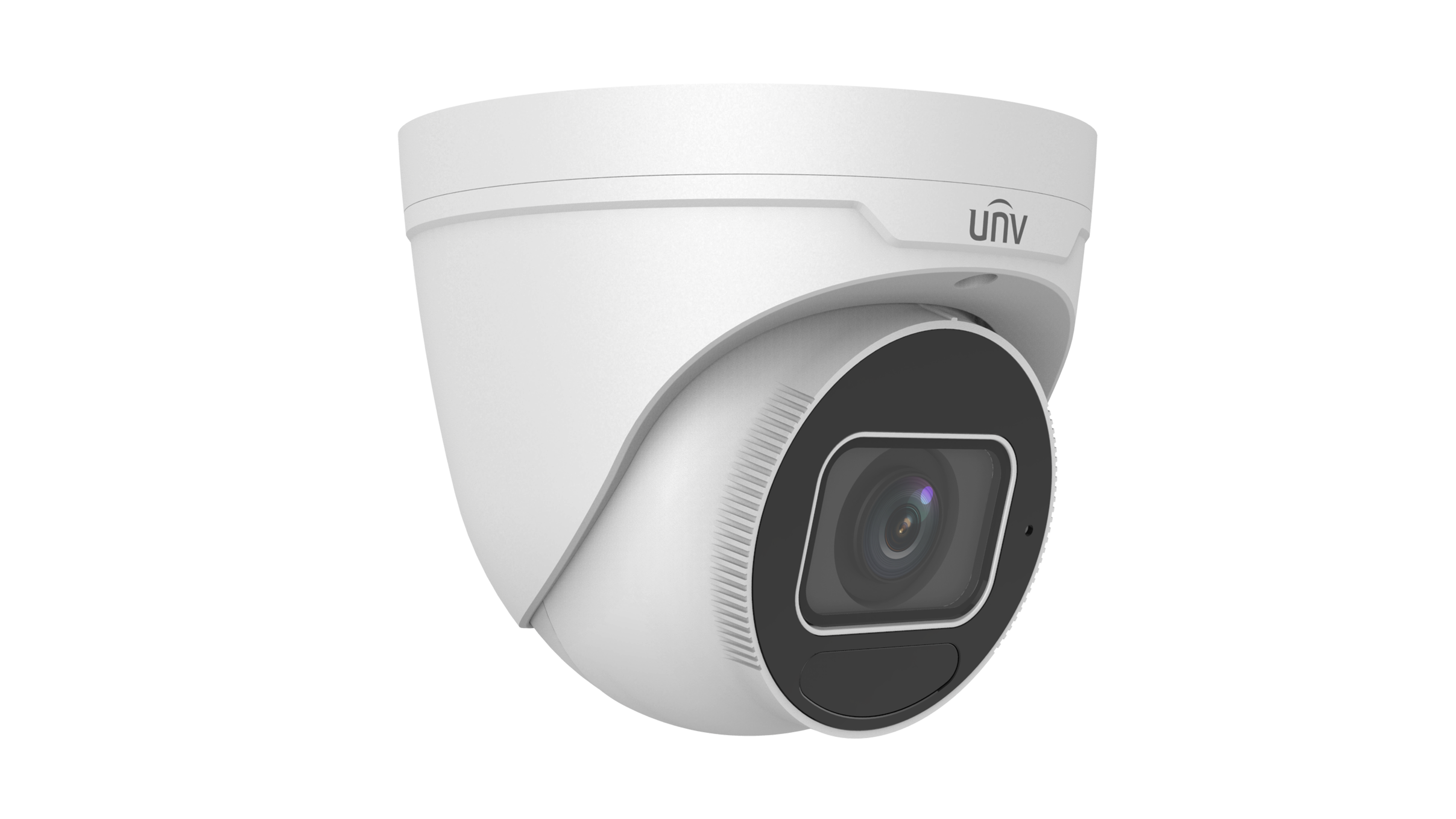

| IPC3634LB-ADZK-H | ||||||||
| Camera | ||||||||
| Max Resolution | 4MP | |||||||
| Sensor | 1/3.0" CMOS | |||||||
| Min. Illumination | Colour: 0.003 lux (F1.6, AGC ON) 0 lux with IR on | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° | |||||||
| S/N | >52dB | |||||||
| WDR | 120dB | |||||||
| Lens | ||||||||
| Focal Length | 2.8 ~ 12 mm | |||||||
| Iris Type | Fixed | |||||||
| Iris | F1.6 | |||||||
| Field of View (H) | 86.3°~35.2° | |||||||
| Field of View (V) | 47.1°~17.0° | |||||||
| Field of View (D) | 91.9°~38.6° | |||||||
| DORI | ||||||||
| DORI Distance(Lens) | 2.8mm, 12mm | |||||||
| DORI Distance(Detect) | 63m(206.7ft), 270.0m(885.8ft) | |||||||
| DORI Distance(Observe) | 25.2m(82.7ft), 108.0m(354.3ft) | |||||||
| DORI Distance(Recognize) | 12.6m(41.3ft), 54.0m(177.2ft) | |||||||
| DORI Distance(Identify) | 6.3m(20.7ft), 27.0m(88.6ft) | |||||||
| Illuminator | ||||||||
| Supplemental Light | IR | |||||||
| Illumination Distance(IR) | 40 m (131.2 ft) | |||||||
| Wavelength | 850 nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P(1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps | |||||||
| Video Bit Rate | 128 Kbps ~ 6144 Kbps | |||||||
| U-code | Support | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Support | |||||||
| Video Stream | Dual Streams | |||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90°Clockwise, 90°Anti-clockwise | |||||||
| Dewarping | N/A | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Digital Defog | |||||||
| Events | ||||||||
| Basic Detection | Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Cross Line (based on Human Body Detection), Intrusion (based on Human Body Detection) | |||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 64 Kbps | |||||||
| Two-way Audio | N/A | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8 KHz | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, SNMP | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||
| User/Host | Up to 32 users, 2 user levels: administrator and common user | |||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
| Client | UNV-Link, UNV-Link Pro, EZStation | |||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||
| Interface | ||||||||
| Audio I/O | N/A | |||||||
| Alarm I/O | N/A | |||||||
| Serial Port | N/A | |||||||
| Built-in Mic | Support | |||||||
| Built-in Speaker | N/A | |||||||
| WIFI | N/A | |||||||
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | |||||||
| Video Output | N/A | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) | |||||||
| Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529) | |||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 7.5W | |||||||
| Power Interface | Ø 5.5 mm coaxial power plug | |||||||
| Dimensions | Φ129 x 110mm (Ø5.1” x 4.3”) | |||||||
| Weight | 0.66kg(1.46lb) | |||||||
| Material | Metal | |||||||
| Working Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |||||||
| Storage Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |||||||
| Surge Protection | 6KV | |||||||
| Reset Button | Support | |||||||
| Web Client Language | 4 Languages English, Russian, Spanish, Vietnamese | |||||||
