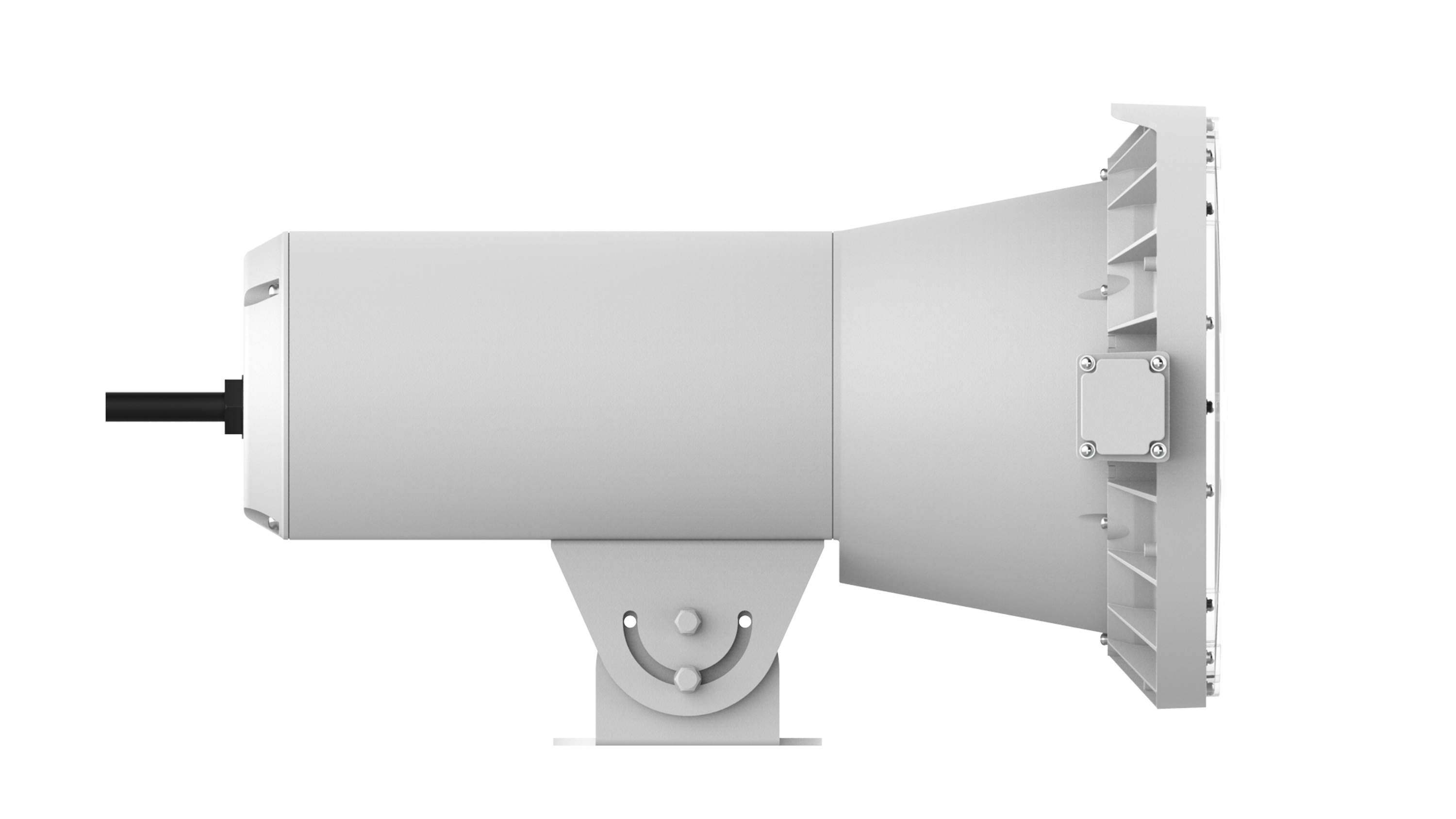

| LAMP-H25@B-OS | ||||||||
| BOM | ||||||||
| BOM | 0231C1DV | |||||||
| LED strobe | ||||||||
| Trigger mode | Strobe: TTL level/switch Flash: Switch | |||||||
| White light flash | ||||||||
| Color temperature | Xenon 6000±500K LED 4000±200K | |||||||
| Output energy | Flash 40J to 80J | |||||||
| White light flash lifetime | ≥10 million times | |||||||
| 硬件参数 | ||||||||
| Strobe power | 34.5W@3A/40% (active power) | |||||||
| Strobe illumination angle | 10° | |||||||
| Flash duration | 300us by default | |||||||
| Exposure index | 40 to 64 (GN) | |||||||
| Response time | ≤55ms (220V) | |||||||
| Interface | 1 power input;1 flash trigger input;1 strobe trigger input | |||||||
| Operating temperature | -30°C to +60°C | |||||||
| Operating humidity | 5% to 95% RH (non-condensing) | |||||||
| Structure | ||||||||
| Power | AC 220V±20%, 40 to 60Hz | |||||||
| Be in common use | ||||||||
| Weight | 4.5kg | |||||||
| Dimensions (L×W×H) | 436.1mm*282mm*279.6mm | |||||||
| Ingress protection | IP65 | |||||||
| Class | Date | Title | Language | Type | Download |
| Datasheet | 2024/9/12 13:44:46 | UNV LAMP-H25@B-OS UNV LED Strobe & Xenon Flash Illuminator 20231228.pdf | English | Download |
| Class | Date | Title | Type | Download |
| HD Image | 2024/9/13 10:32:50 | LAMP-H25@B-OS_HD_Image_1.png | png | Download |
| HD Image | 2024/9/13 10:32:50 | LAMP-H25@B-OS_HD_Image_2.png | png | Download |
| HD Image | 2024/9/13 10:32:50 | LAMP-H25@B-OS_HD_Image_3.png | png | Download |
| HD Image | 2024/9/13 10:32:50 | LAMP-H25@B-OS_HD_Image_4.png | png | Download |
| HD Image | 2024/9/13 10:32:50 | LAMP-H25@B-OS_HD_Image_5.png | png | Download |
| Class | Date | Title | Language | Type | Download |
| Quick Guide | 2024/6/18 4:56:58 | UNV-LAMP-H25-Illuminator Quick Guide-V1.pdf | English | Download |
| Class | Date | Title | Download |
| Dimensions | 2024/9/13 10:32:50 | LAMP-H25@B-OS_Dimensions_1.png | Download |
